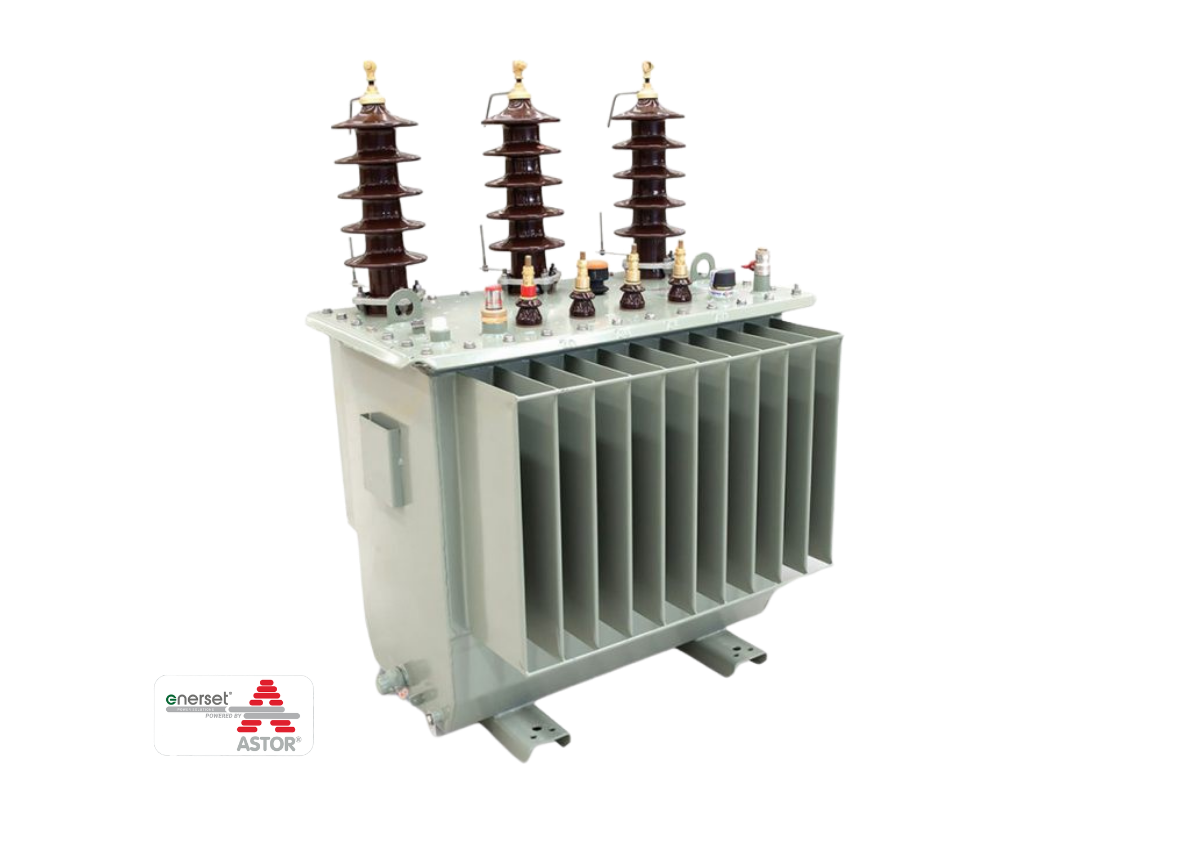

Efficient Distribution
Enerset’s distribution transformers are designed to deliver reliable power directly to the point of consumption, providing consistent voltage for commercial, industrial, and local distribution applications. Compact, durable, and efficient, they are ideal for local power distribution networks, commercial complexes, and industrial facilities.
Engineered to minimize energy losses and maintain optimal performance under varying load conditions, these transformers prioritize reliability and cost-effective operation. Enerset distribution transformers provide a dependable solution for efficient and sustainable energy distribution.
- Features
- Specifications
Operating voltages for 300 kVA through 1500 kVA rating
High Voltages (MV)
- Various dual high voltages
- 2400 through 34500 V Delta
- 4160Grd Y/2400 V through 34500 Grd Y/19920 V
High Voltage Taps
- All voltages are available with 5 or 7 step taps
- Dual voltage taps provided only on the higher voltage
Low Voltages (LV)
- 208Y/120 V, 480Y/277 V, 480 V, 240 V‚ and 240 V‚ with 120 V mid-tap in one phase
- 4160Y/2400 V, 4160 V, 2400 V
Primary Insulation Classes
- 35 kV, 200 kV BIL and below
- High efficiency design – TP1
- Special ambient design
- Low sound level design
- 50 Hz and 60 Hz design
- K-factor rating
- Network type transformers

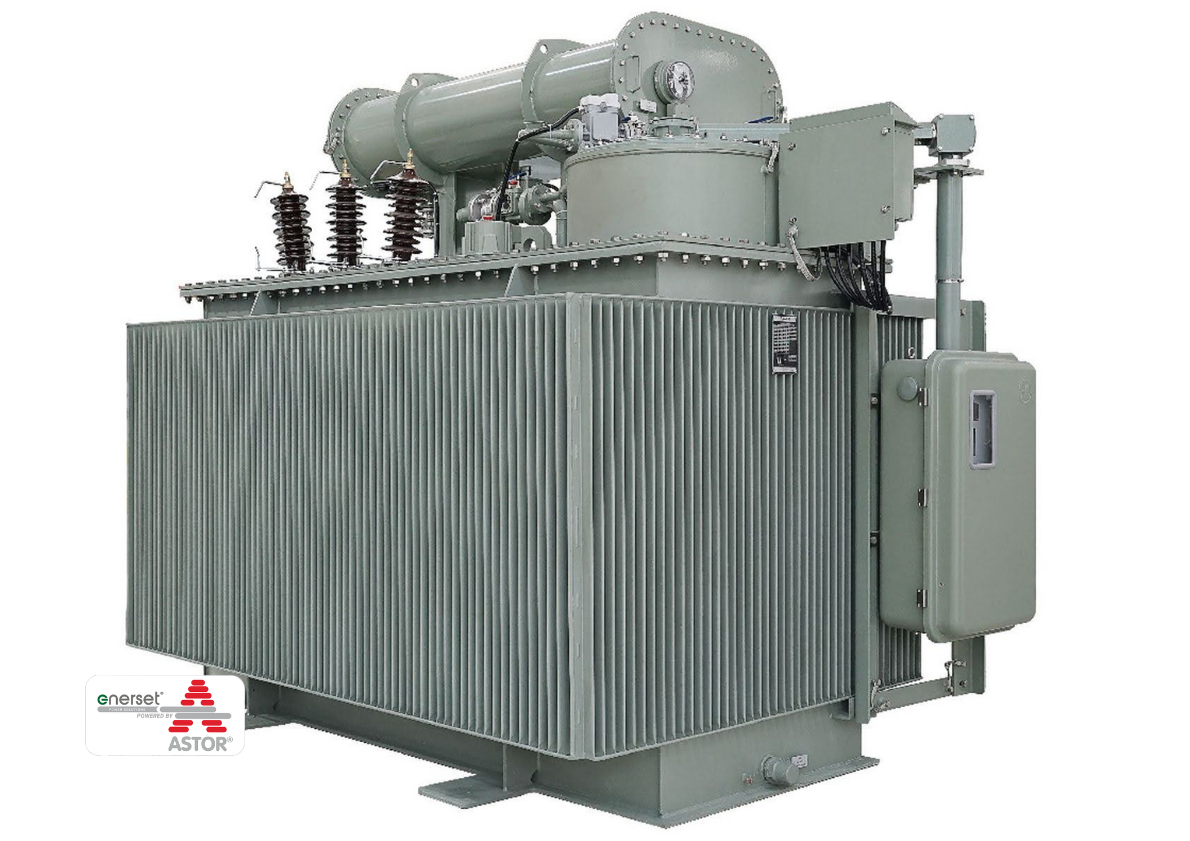

- Maximum voltage and MVA – Up to 138 kV and 100 MVA
- Off Load (NLTC) and On Load tap Changer (OLTC) are available.
- Available fluids – Mineral oil, silicon oil and FR3 (vegetable oil)
- Standards – ANSI, IEEE, NEMA and IEC
- 65°C average winding rise
- Unique step-stacked core and rectangular wound core
- 60 Hz standard, optional 50 Hz
- Mineral oil, optional FR3
- Standards – ANSI, NEMA, IEEE65°C average winding rise
